Advanced Phenolic Material
Independent lab testing shows phenolic core partitions are among the most durable money can buy. Scratches, dents, impacts, you name it: phenolic outshines in every category.
Independent lab tests show the outstanding durability of phenolic toilet partitions when faced with vandalism, blunt force and fire.
Phenolic has top tier resilience against scratches, dents and graffiti. The material has passed with flying colors when put through the ringer by ASTM-compliant tests at an independent laboratory.

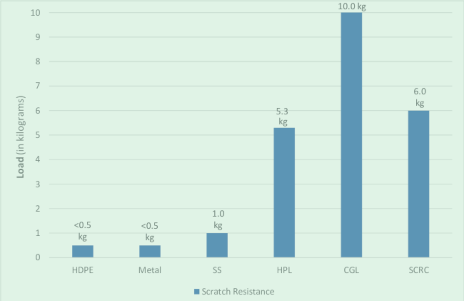

When it comes to scratch resistance, phenolic is as good as it gets, with the material effectively resisting up to 22 lbs of weight on a pointed scraper that was drawn along the surface.

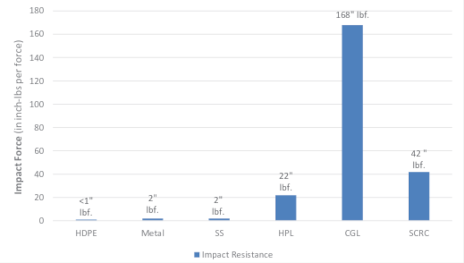

In lab tests, it took over 168″ inch-lbs of impact force before visible damage occurred. In another test, a phenolic partition’s door was tested with the impact of a 180lb person ramming it at full run with no significant damage occurring. It’s no surprise they come with a manufacturer 25 year warranty.

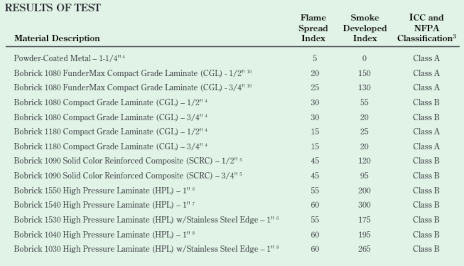

ASTM E 84-01 “Test for Surface Burning Characteristics of Building Materials” analyzed the results of a gas-fed flame source applied to a phenolic panel. This ASTM standard is required by the NFPA 101 Life Safety Code® and International Building Code® for classification of Interior Wall or Ceiling Finish.
Get the Right Material for Your Job

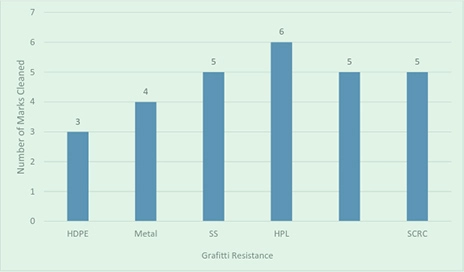

|Material||Price Index||Scratch Resistance ASTM D 2197 weight Required to Scratch||Impact Resistance ASTM D 2794 Visable Damage, Inches-Pounds Per Force(lbf)||Graffiti Resistance ASTM D 6578 Marks Removed (Out of 6)||Interior Finish Classification ASTM E 84|
|Compact Grade Laminate (CGL) (Black Core)||$$ – $$$||5||Class A Or B|
|Solid Core Reinforced Composite (SCRC)||$$$||5||Class B|
|High Pressure Laminate (HPL)||$ – $$$$||6||Class B|
|Powder-Coated Metal||$||4||Class A|
|Plastic(HDPE)||$$||3||In 48 states and Washington, D.C, ASTM E 84 is not the relevant test. Must pass an unmodified NFPA 286 test|
|Stainless Steel||$$$$$||5||Class A|

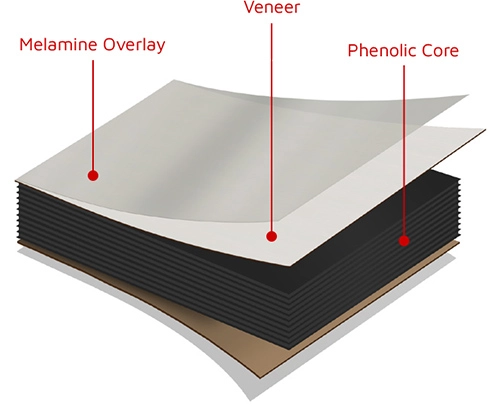

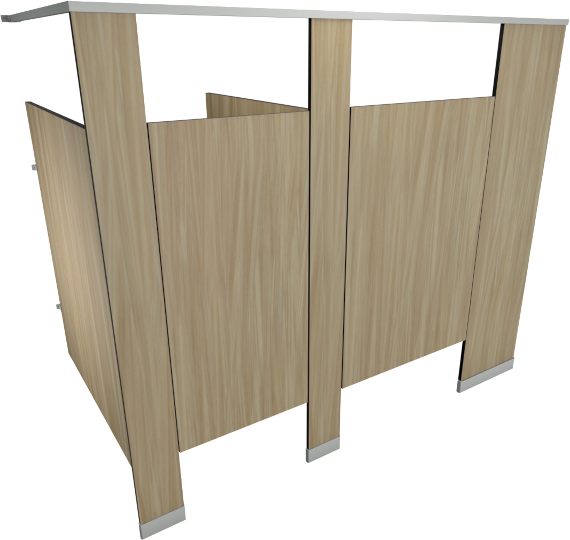

- Phenolic solid-core construction
- 25 year warranty
- Ultra-Hard Graffiti-Off Surface
- Scratch, dent, moisture and impact-resistant
- 3/4” Doors/stiles and ½” panels
- Concealed Stainless Steel Hardware
- Class A (1180 Series) and Class B (1080 Series) ASTM E 84 Interior Wall and Ceiling Finish Classification
- Wide selection of color and pattern options by Arborite, Formica, Wilsonart and Fundermax
- Emergency access doors
- Single panel width up to 72” for deeper stalls (Fundermax colors)
- Hardware options include extra heavy-duty full height brackets and occupancy indicator latches
Level Up With Top Tier Privacy Options

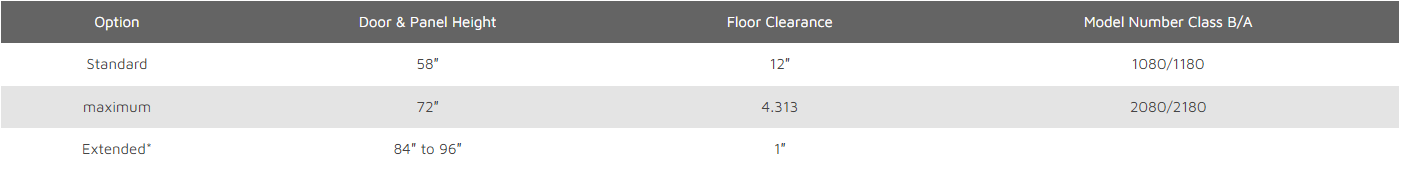

Maximum Height Option
|Option||Door & Panel Height||Floor Clearance||Model Number Class B/A|
|Extended*||84″ to 96″||1″|
Choose Hardware Options
That Match Your Needs

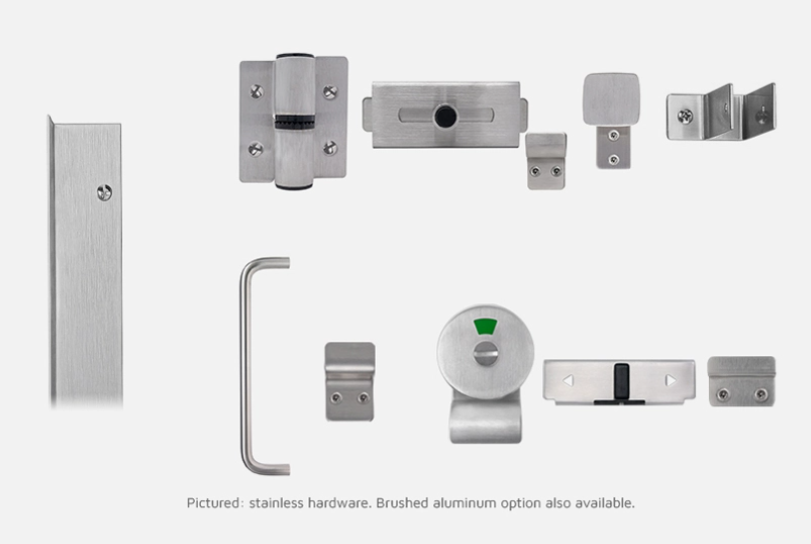

DuraLineSeries’s standard concealed stainless steel hardware package includes barrel hinges, latch and keeper, bracket, coat hook, inswing door hardware and/or outswing door pull. Optimize your design with additional options below”
Heavy duty full height stainless steel brackets. Add .67 suffix to 1080/1180 or 2080/2180.
Occupancy Indicator Latch (standard with Extended privacy). Part number 1002612.
Laminate & Phenolic Colors
Panels over 60” wide with directional Patterns and finishes will be spliced, joining the 2 Pieces on the particle board at an additional charge.
HPL colors are printed reproductions and are for descriptive purposes only. Refer to manufacturer’s samples for absolute color fidelity. Color guides and samples are available from Fast Partitions upon request.
