Bathroom Stalls Partitions » Toilet Partition Types » Solid Plastic
plastic blue partitions

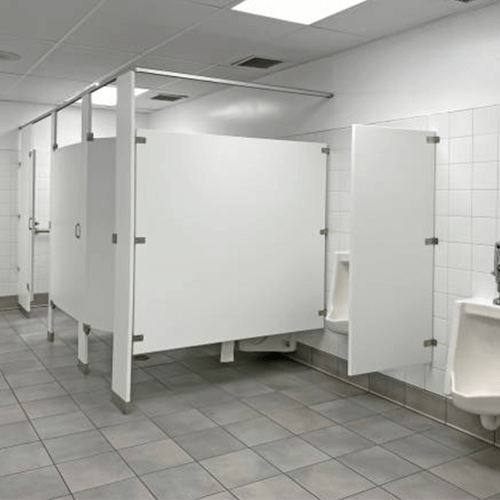

Solid Plastic Bathroom Toilet Partitions

Starting At $350
Fast Nationwide Delivery
Instant Pricing on Solid Plastic Toilet Partitions!
The ideal material for high-traffic restrooms in buildings such as schools, restaurants, and gas stations. Plastic toilet partitions are made with the most durable, damage-resistant plastic. With a 25 year manufacturers warranty, these bathroom partitions are built to last, and with 14 colors to choose from, you don’t have to sacrifice style for durability.
Bathroom Stall Divider panels, Pilasters & Doors
Fast Shipping
Expert Designers To Help With Any Project Size.
Instant Pricing on Any Project.

Bobrick Toilet Partitions

Hadrian Toilet Partitions

Global Partitions

Bradley Toilet Partitions

Product Features

Solid Core With No Air Pockets
Hadrian’s plastic material features a solid core that does not contain foaming agents, which can cause the formation of air pockets.
Headrail
Hadrian’s easy-to-install cap-over headrail ensures a rigid finished installation. For joining two pieces together, the headrail system features a convenient snap-fit design that does not require extra fasteners.
Heavy-Duty Aluminum Hardware
Heavy-duty aluminum 8" (203mm) round barrel hinges. 6" (152mm) aluminum stop and keeper. Black anodized latch with emergency access feature. Full height aluminum channels at panel to pilaster connection. Three heavy-duty aluminum brackets at panel to wall and pilaster to wall connections. #4 brushed stainless steel shoes
Fasteners
Fasteners are theft-proof 6-lobe security head stainless steel screws to deter vandalism
Shoes
Durable and easy to maintain, Hadrian’s 3" (76mm) high stainless steel anchor shoes look great and make installation easy. 3” (76mm) high plastic anchor shoes are also available in colors to match / complement solid plastic partitions. Ceiling hung and floor to ceiling toilet partitions use 4” (102mm) high stainless steel shoes only.

Additional Information

Colors Charts
Elevations
Specifications
Solid Color

Construction
Doors, panels and pilasters shall be certified CLASS B polyethylene or 100% post-consumer recycled polyethylene solid plastic. The material shall contain no foaming agents, which can cause the formation of air pockets. The self-lubricating surface is resistant to marking and can be maintained effectively with ordinary household cleaners. Material is ideal for toilet partition installations, especially in high abuse and high moisture environments.

Doors
Shall be (25mm) 1” thick by (1397mm) 55” high straight cut with fine radius edges.

Panels
Shall be (25mm) 1” thick by (1397mm) 55” high straight cut with fine radius edges.

Pilasters
Shall be (25mm) 1” thick by (2083mm) 82” high straight cut with fine radius edges.

Headrail
Shall be 32mm (1.25”) by 44mm (1.75”) extruded anodized aluminum with anti-grip design. Wall thickness to be 1.5mm (0.060”) and shall be securely attached to wall and pilasters with manufacturer’s fittings in such a way as to make a rigid installation. All joints in headrails shall be made at a pilaster.

Pilaster Fastening Method

Pilasters shall be securely and rigidly fastened to the floor with 3” (76mm) high stainless steel anchor shoes. Plastic anchor shoes are also available in colors to complement the partitions. Three heavy-duty aluminum brackets shall be used at the pilaster to wall connection.

Hardware & Fittings
Doors are installed with 1/8” thick heavy extruded clear anodized aluminum hinges, which wrap around both the door and pilaster. Hinges are fastened to door and pilaster with tamper-proof 6-lobe security head stainless steel thru-bolts and fastened to the edge of the door and pilaster with a #10 x 1” screw. Top hinges have adjustable nylon cams. Strike-keeper and throw latch are extruded clear anodized aluminum. Three heavy-duty aluminum brackets are used at the panel to wall connection and a full-height continuous aluminum channel is used at the panel to pilaster connection. Hadrian’s unique designer coat hook & bumper features a solid cast zinc hook and oversized black rubber bumper that functions as both a door stop and bag hook. Fasteners are theft-proof 6-lobe security head stainless steel screws. Hadrian hardware meets ADA and CHC requirements.

Finish
Doors, panels and pilasters shall be certified CLASS B polyethylene or 100% post-consumer recycled polyethylene with uniform color throughout. Color shall be as selected from Hadrian’s color card.

Headrail braced toilet partitions stocked in USA. Headrail braced toilet partitions stocked in Canada.

Headrail braced type 304, #4 brushed stainless steel toilet partitions are stocked in the USA. Lockers are not available in stainless steel.

**NOTICE** Colors shown are approximations only. For accurate color matches, request manufacturers printed color card. Fast Partitions reserves the right to change colors and/or finishes without prior notice.
