Between Walls; 1 ADA; 3 Regular – Stainless Steel Bathroom Stalls

This stainless toilet partitions plan supplies 1 ada stall with left hand inswing door and 2 regular stalls with left hand inswing doors. Hadrian stainless steel boasts 91% (76% post-consumer 15% pre-consumer) recycled content while still coming in at a great price. Optional special finishes.
Starting at
Standard Colors
Anti-Graffiti Colors
Special Effects Colors

Layout Detail

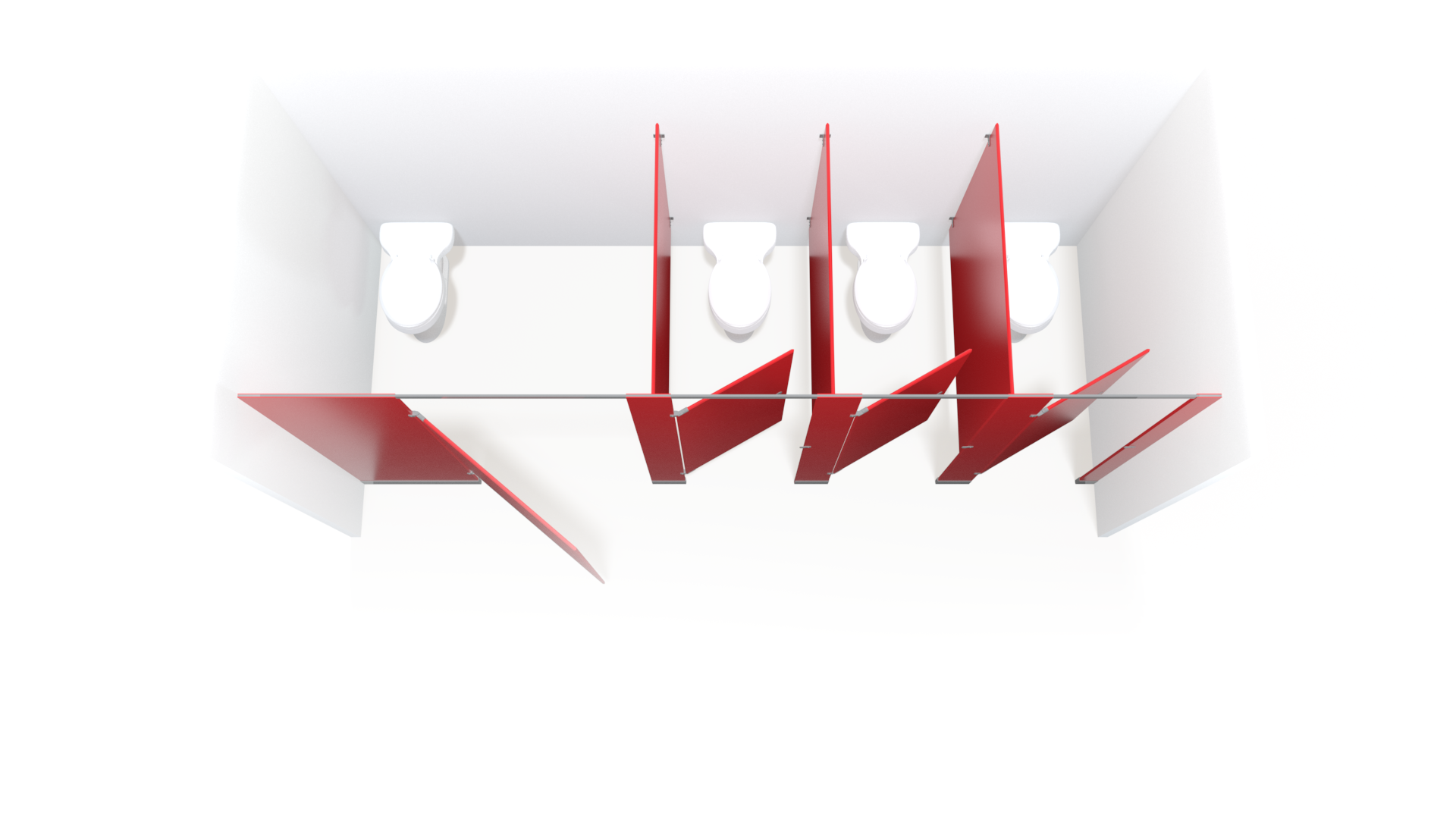

Layout406 - Between Walls; 1 ADA; 3 Regular
Layout Code406
HeadrailsHeadrail-braced configuration includes 60", 72" or 90" headrails cut to length
Hardware Materialchrome plated (stainless optional upgrade)
ADA Stall Depth60" Typical
ADA Stall Width60.5" Typical
Standard Stall Depth60" Typical
Standard Stall Width36" Typical
Alcove Channels0
Headrail Brackets6
Headrail End Caps0
F Brackets4
U Brackets6
H Brackets6
Coathook Bumpers4
Shoes (Stainless)4
Regular Stalls3
Alcove Stalls0
Box Stalls1
