Alcove Right; 3 BW Units – Stainless Steel Bathroom Stalls

This Hadrian stainless steel toilet partitions plan supplies 3 stalls featuring right hand inswing doors and 1 alcove unit with a right hand inswing door. Stainless features 91% (76% post-consumer 15% pre-consumer) recycled content and is cost effective. Talk to one of our reps to upgrade to special finishes.
Starting at
Standard Colors
Anti-Graffiti Colors
Special Effects Colors

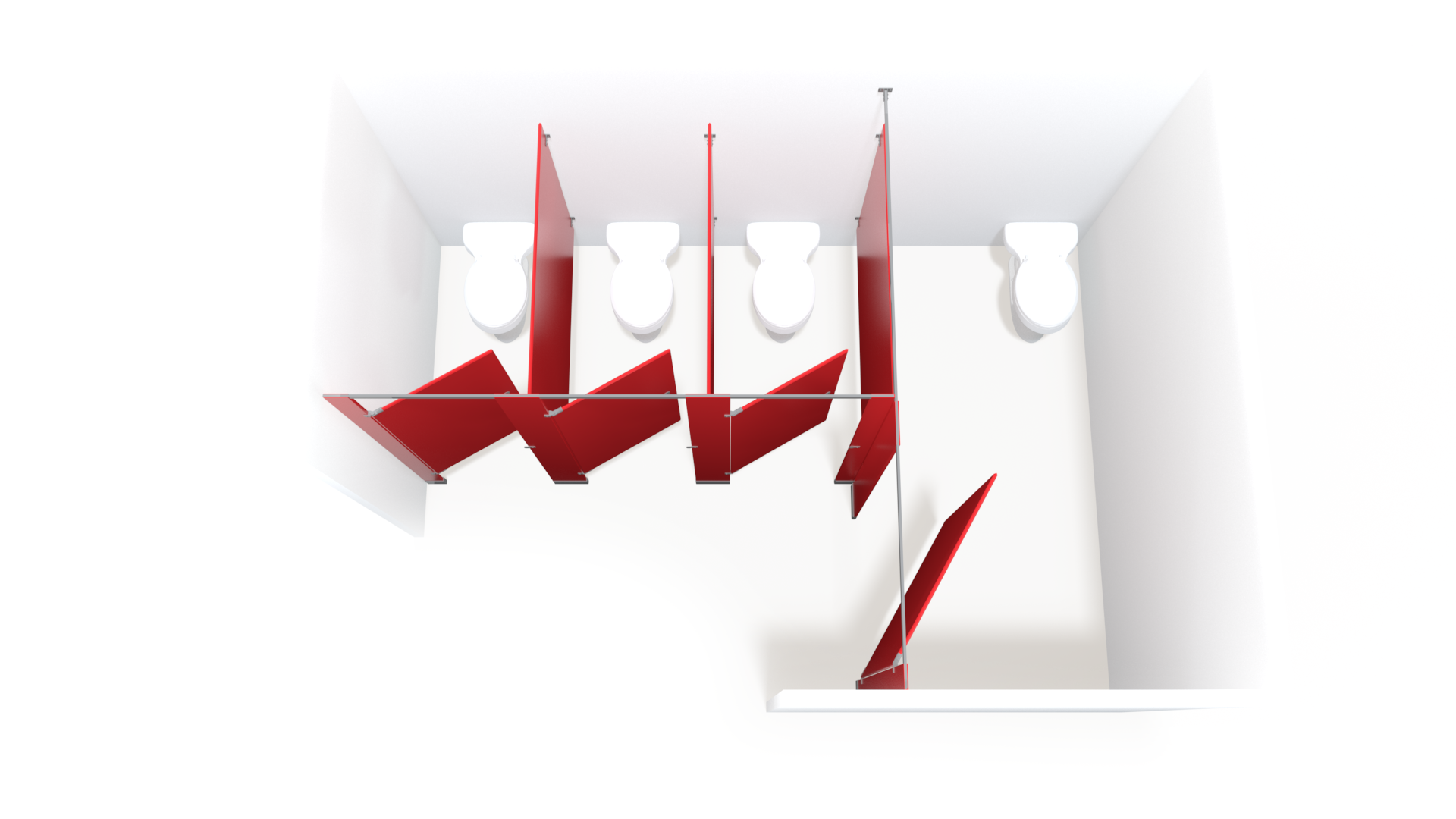

Layout Detail

Layout414 - Alcove Right; 3 BW Units
Layout Code414
HeadrailsHeadrail-braced configuration includes 60", 72" or 90" headrails cut to length
Hardware Materialchrome plated (stainless optional upgrade)
ADA Stall Depth60" Typical
ADA Stall WidthN/A
Standard Stall Depth60" Typical
Standard Stall Width36" Typical
Alcove Channels1
Headrail Brackets4
Headrail End Caps1
F Brackets4
U Brackets8
H Brackets6
Coathook Bumpers4
Shoes (Stainless)6
Regular Stalls3
Alcove Stalls1
Box Stalls0
