Alcove Right; 2 Corner Units – Solid HDPE Plastic Bathroom Stalls

This solid plastic toilet partitions plan supplies 2 corner unit stalls featuring right hand inswing doors and 1 alcove stall with a right hand inswing door. HDPE boasts a heavy-duty construction that is highly graffiti-resistant and is one of the best values in the industry. Ask about optional anti-graffiti partitions.
Starting at
Standard Colors
Anti-Graffiti Colors
Special Effects Colors

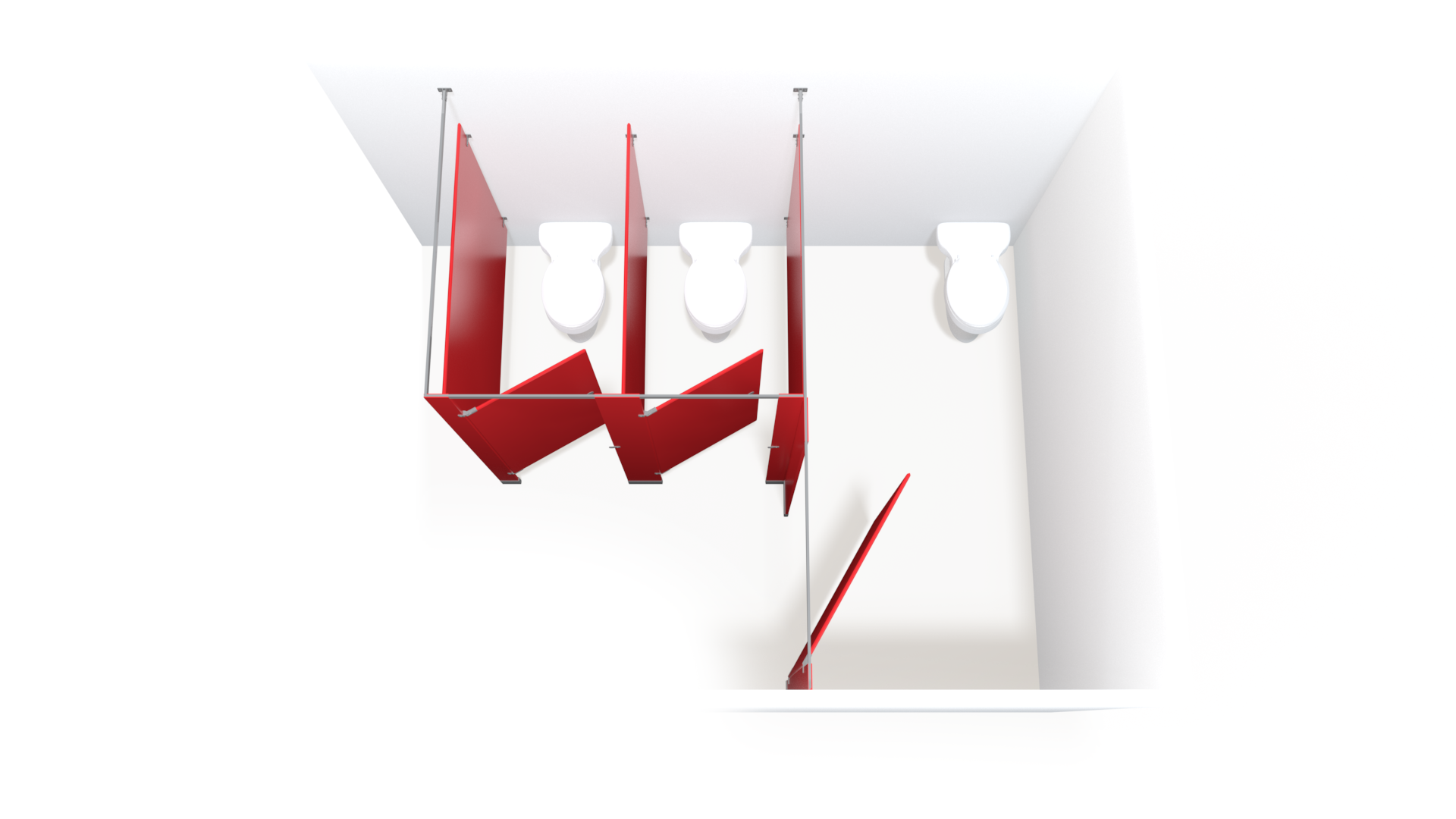

Layout Detail

Layout312 - Alcove Right; 2 Corner Units
Layout Code312
HeadrailsHeadrail-braced configuration includes 60", 72" or 90" headrails cut to length
Hardware Materialchrome plated (stainless optional upgrade)
ADA Stall Depth60" Typical
ADA Stall WidthN/A
Standard Stall Depth60" Typical
Standard Stall Width36" Typical
Alcove Channels1
Headrail Brackets4
Headrail End Caps2
F Brackets4
U Brackets6
H Brackets4
Coathook Bumpers3
Shoes (Stainless)5
Regular Stalls2
Alcove Stalls1
Box Stalls0
