Right Corner; 2 Regular; 1 ADA – Powder Coated Metal Bathroom Stalls

This powder coated steel toilet partitions plan supplies 2 regular stalls equipped with right hand inswing doors and 1 ADA stall with a right hand outswing door. Powder coated metal features a lighter weight than solid-core options and is resistant to harsh cleaning chemicals and detergents. Talk to one of our reps to upgrade to stainless hardware.
Starting at
$2,518.06
Standard Colors
Anti-Graffiti Colors
Special Effects Colors

Layout Detail

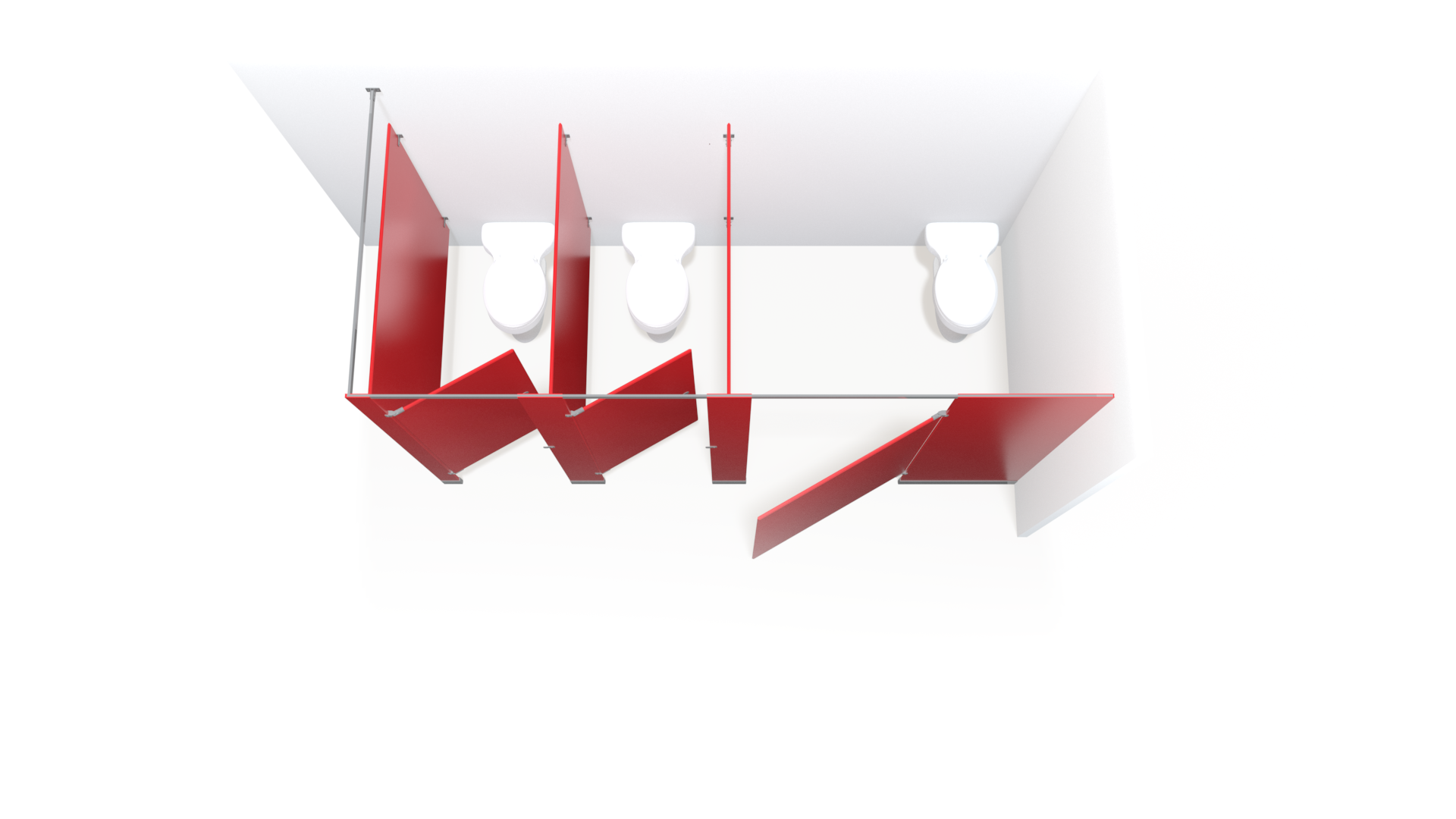

Layout304 - Right Corner; 2 Regular; 1 ADA
Layout Code304
HeadrailsHeadrail-braced configuration includes 60", 72" or 90" headrails cut to length
Hardware Materialchrome plated (stainless optional upgrade)
ADA Stall Depth60" Typical
ADA Stall Width60.5" Typical
Standard Stall Depth60" Typical
Standard Stall Width36" Typical
Doors3
Pilasters3
Panels4
Alcove Channels0
Headrail Brackets3
Headrail End Caps1
F Brackets4
U Brackets6
H Brackets4
Knobs3
Hinges6
Stopper-Keepers3
Coathook Bumpers3
Shoes (Stainless)3
Regular Stalls2
Alcove Stalls0
Box Stalls1
