Alcove Left; 1 BW Unit – Powder Coated Metal Bathroom Stalls

This powder coated steel bathroom partitions layout accounts for 1 stall with a left hand inswing door. Powder coated metal boasts industry-best fire resistance and is resistant to harsh cleaning chemicals and detergents. Optional enhanced privacy features.
Starting at
Standard Colors
Anti-Graffiti Colors
Special Effects Colors

Layout Detail

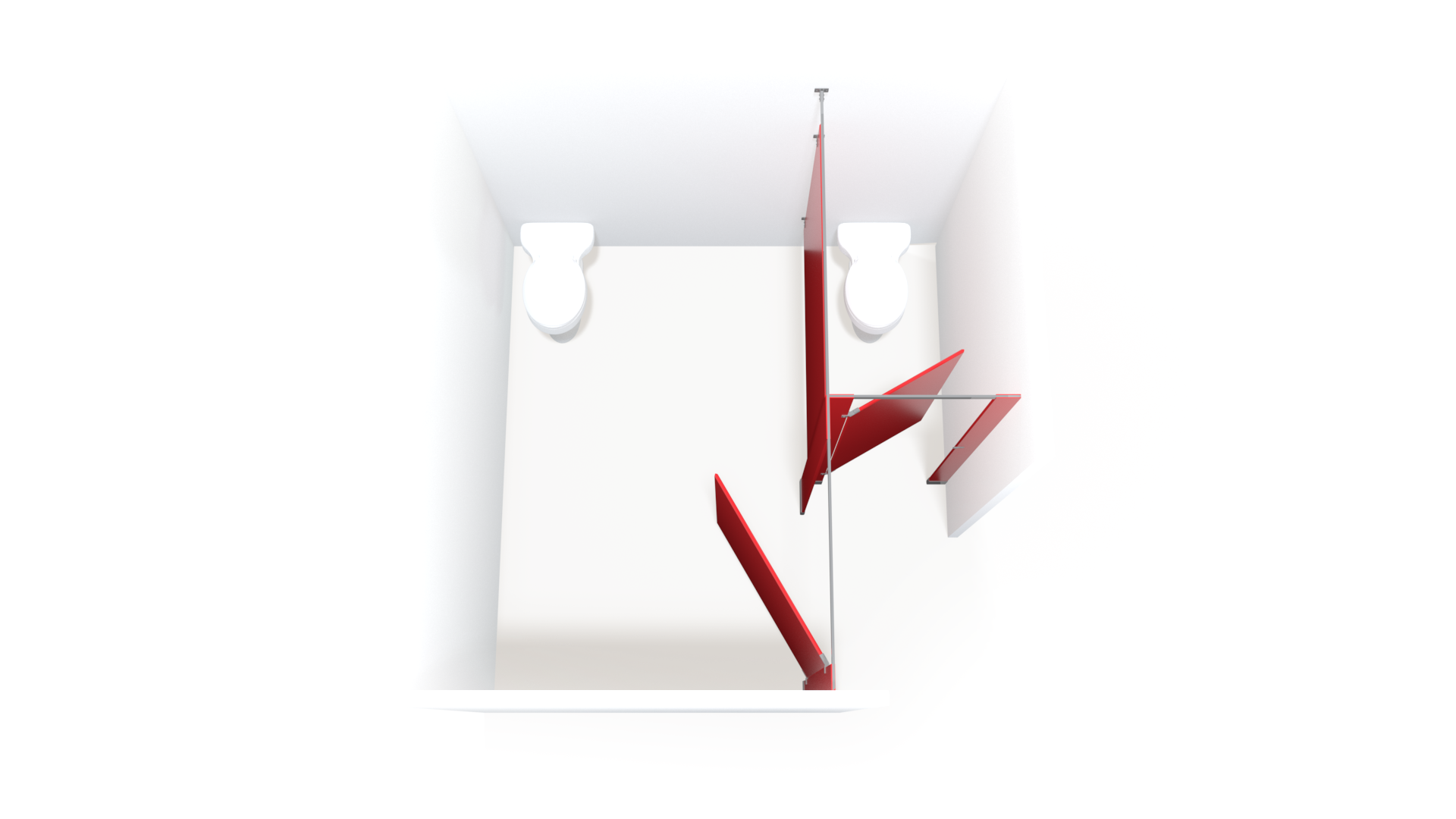

Layout213 - Alcove Left; 1 BW Unit
Layout Code213
HeadrailsHeadrail-braced configuration includes 60", 72" or 90" headrails cut to length
Hardware Materialchrome plated (stainless optional upgrade)
ADA Stall Depth60" Typical
ADA Stall WidthN/A
Standard Stall Depth60" Typical
Standard Stall Width36" Typical
Alcove Channels1
Headrail Brackets4
Headrail End Caps2
F Brackets4
U Brackets2
H Brackets2
Coathook Bumpers2
Shoes (Stainless)4
Regular Stalls1
Alcove Stalls1
Box Stalls0
