Between Walls; 3 Regular; 1 ADA – Phenolic Bathroom Stalls

This high pressure laminate bathroom stalls plan gives you 3 regular stalls with right hand inswing doors and 1 ADA still with a right hand outswing door. Black core phenolic has an industry leading 25 year warranty and a wide selection of WilsonArt, Formica, Arborite and other surface choices. Ask about optional Euro-style cubicles.
Starting at
$3,745.00
Standard Colors
Anti-Graffiti Colors
Special Effects Colors

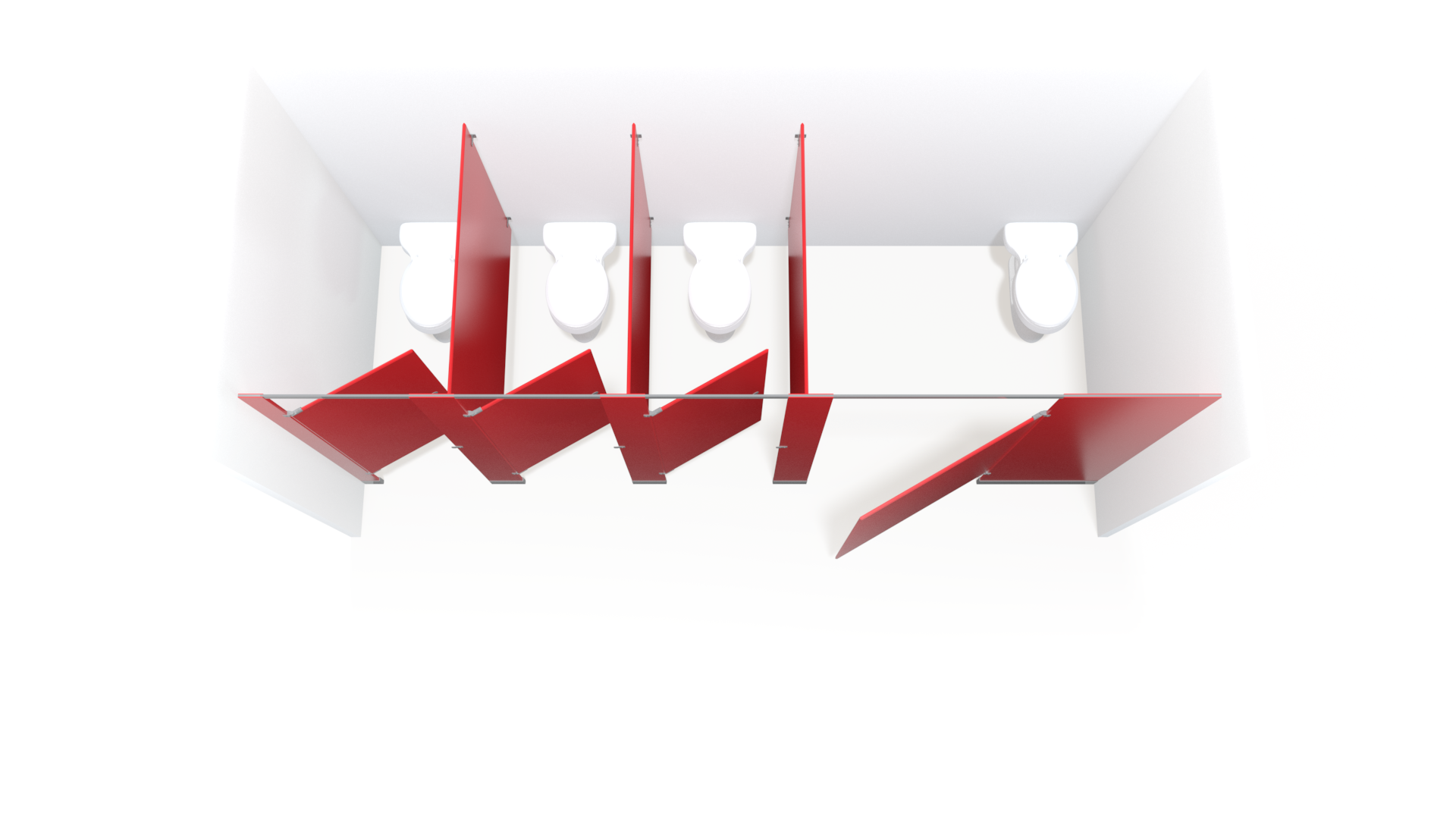

Layout Detail

Layout407 - Between Walls; 3 Regular; 1 ADA
Layout Code407
HeadrailsHeadrail-braced configuration includes 60", 72" or 90" headrails cut to length
Hardware Materialchrome plated (stainless optional upgrade)
ADA Stall Depth60" Typical
ADA Stall Width60.5" Typical
Standard Stall Depth60" Typical
Standard Stall Width36" Typical
Doors4
Pilasters4
Panels4
Alcove Channels0
Headrail Brackets6
Headrail End Caps0
F Brackets4
U Brackets6
H Brackets6
Knobs4
Hinges8
Stopper-Keepers4
Coathook Bumpers4
Shoes (Stainless)4
Regular Stalls3
Alcove Stalls0
Box Stalls1
