Alcove Right; 4 Corner Units – Phenolic Bathroom Stalls

This HPL toilet partitions configuration supplies 4 corner unit stalls featuring right hand inswing doors and 1 ADA stall with a right hand inswing door. Phenolic (CGL) features panel widths up to 72” for deeper stalls while still offering all of the color options of high pressure laminate. Talk to one of our reps to upgrade to specialty veneers.
Starting at
Standard Colors
Anti-Graffiti Colors
Special Effects Colors

Layout Detail

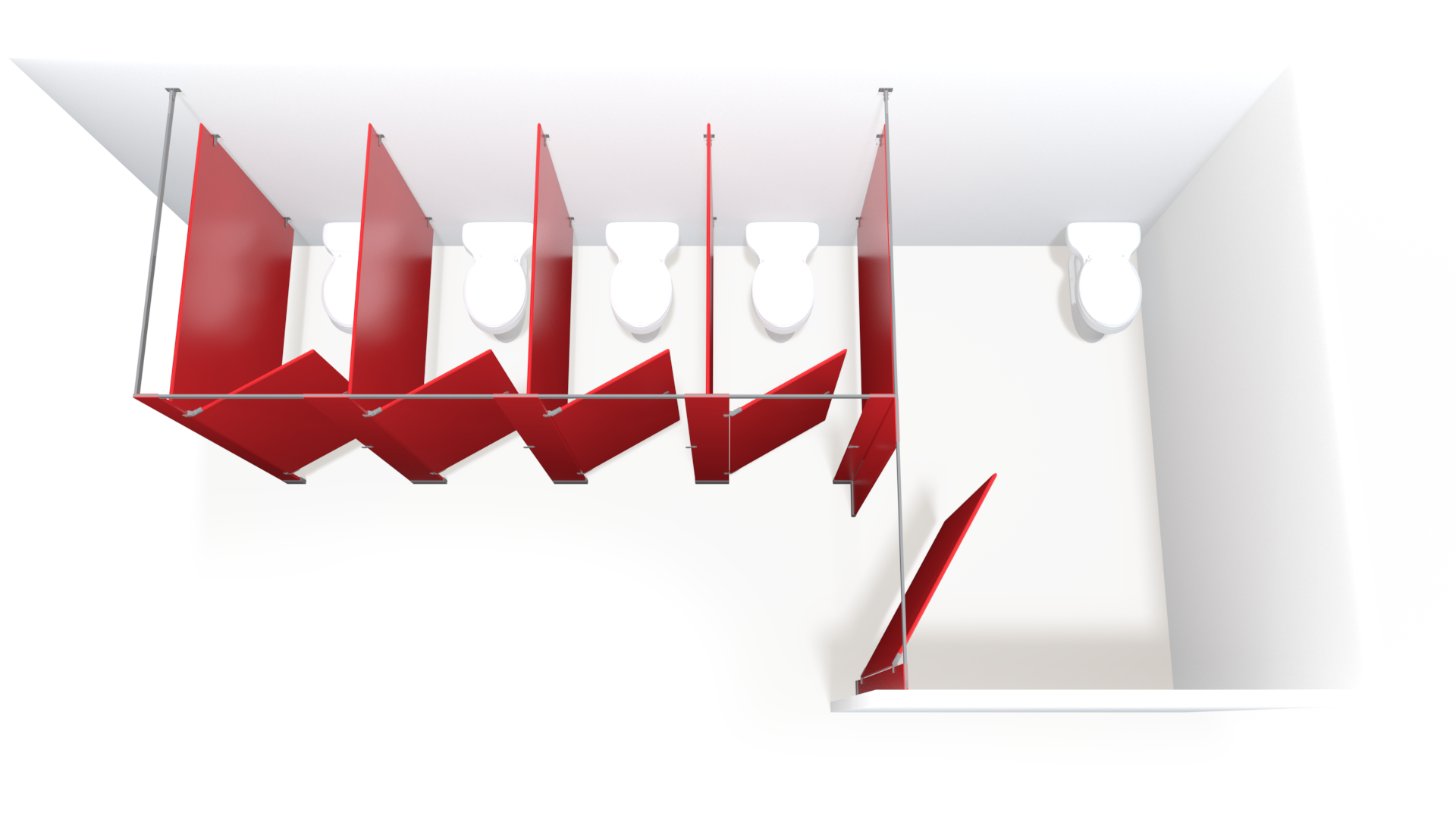

Layout512 - Alcove Right; 4 Corner Units
Layout Code512
HeadrailsHeadrail-braced configuration includes 60", 72" or 90" headrails cut to length
Hardware Materialchrome plated (stainless optional upgrade)
ADA Stall Depth60" Typical
ADA Stall WidthN/A
Standard Stall Depth60" Typical
Standard Stall Width36" Typical
Alcove Channels1
Headrail Brackets4
Headrail End Caps1
F Brackets4
U Brackets10
H Brackets8
Coathook Bumpers5
Shoes (Stainless)7
Regular Stalls4
Alcove Stalls1
Box Stalls0
