Freestanding; 4 Regular; 1 ADA – Laminate Bathroom Stalls

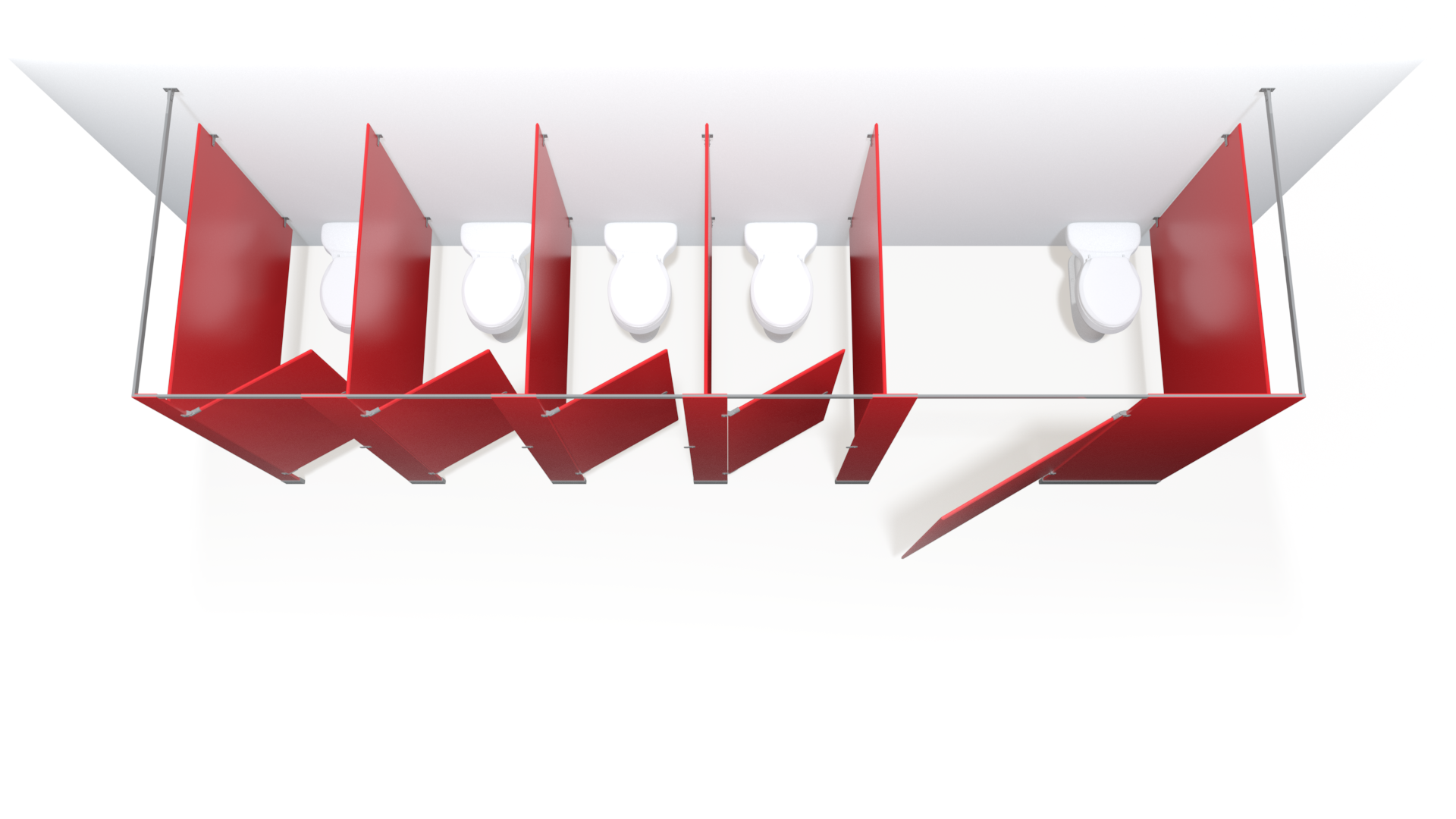

This plastic laminate restroom dividers layout supplies 4 regular stalls equipped with right hand inswing doors and 1 ADA stall with a right hand outswing door. High pressure laminate features a wide array of color/pattern options and is cost effective. Optional maximum height privacy panels.
Starting at
Standard Colors
Anti-Graffiti Colors
Special Effects Colors

Layout Detail

Layout510 - Freestanding; 4 Regular; 1 ADA
Layout Code510
HeadrailsHeadrail-braced configuration includes 60", 72" or 90" headrails cut to length
Hardware Materialchrome plated (stainless optional upgrade)
ADA Stall Depth60" Typical
ADA Stall Width60.5" Typical
Standard Stall Depth60" Typical
Standard Stall Width36" Typical
Alcove Channels0
Headrail Brackets2
Headrail End Caps1
F Brackets4
U Brackets12
H Brackets8
Coathook Bumpers5
Shoes (Stainless)5
Regular Stalls4
Alcove Stalls0
Box Stalls1
