Between Walls; 5 Regular – Laminate Bathroom Stalls

This high pressure laminate bathroom stalls plan gives you 5 regular stalls with left hand inswing doors. HPL has a durable melamine coating and is cost effective. Ask about optional Euro-style cubicles.
Starting at
$2,112.00
Standard Colors
Anti-Graffiti Colors
Special Effects Colors

Layout Detail

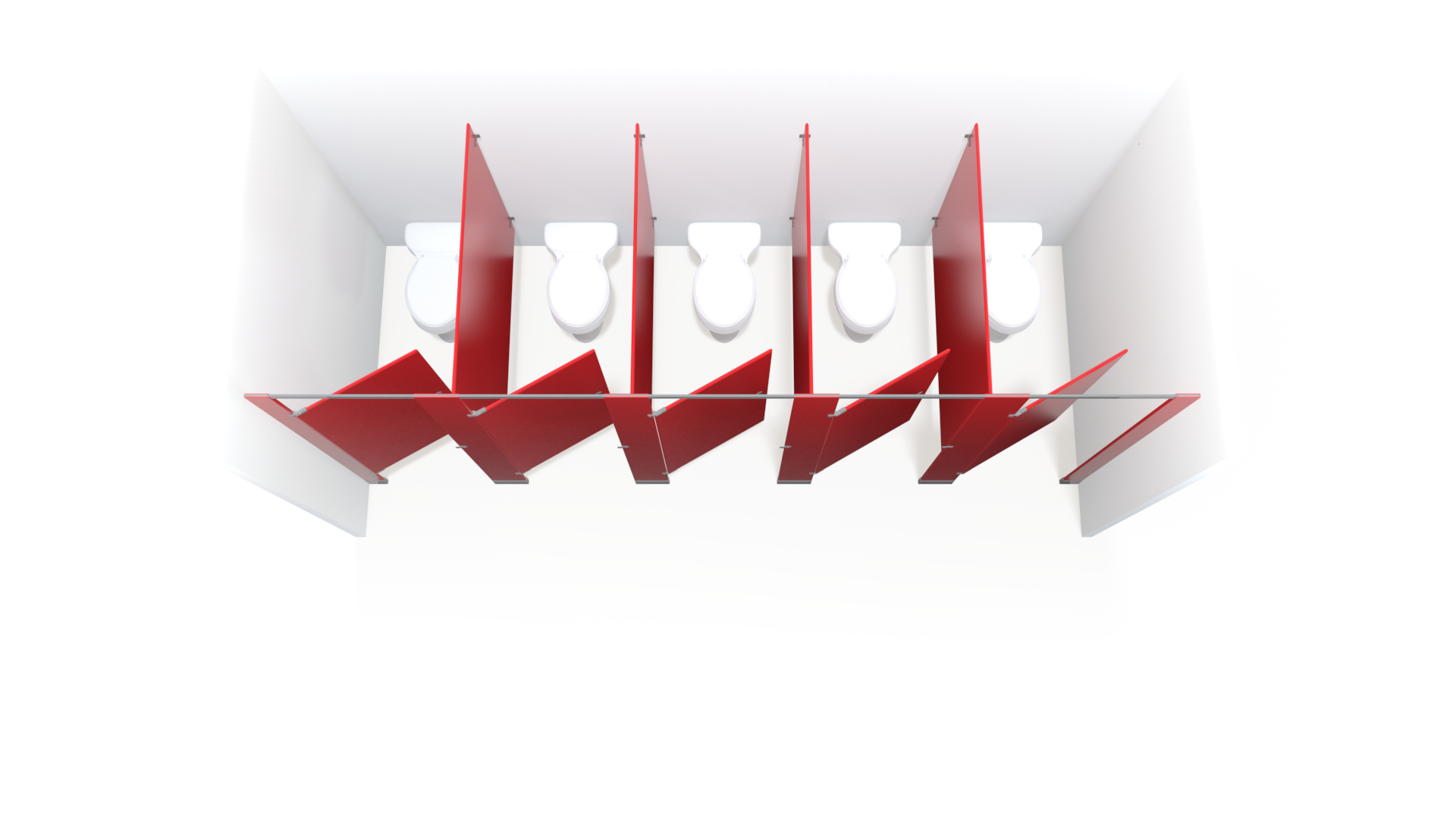

Layout505 - Between Walls; 5 Regular
Layout Code505
HeadrailsHeadrail-braced configuration includes 60", 72" or 90" headrails cut to length
Hardware Materialchrome plated (stainless optional upgrade)
ADA Stall Depth60" Typical
ADA Stall WidthN/A
Standard Stall Depth60" Typical
Standard Stall Width36" Typical
Doors5
Pilasters6
Panels6
Alcove Channels0
Headrail Brackets3
Headrail End Caps1
F Brackets4
U Brackets10
H Brackets8
Knobs5
Hinges10
Stopper-Keepers5
Coathook Bumpers5
Shoes (Stainless)6
Regular Stalls5
Alcove Stalls0
Box Stalls0
