Alcove Left; 3 BW Units – Laminate Bathroom Stalls

This high pressure laminate bathroom partitions plan accounts for 3 stalls with left hand inswing doors and 1 alcove stall with a left hand inswing door. HPL boasts good impact and graffiti-resistance and is an ideal choice for enhanced privacy. Ask about optional enhanced privacy features.
Starting at
Standard Colors
Anti-Graffiti Colors
Special Effects Colors

Layout Detail

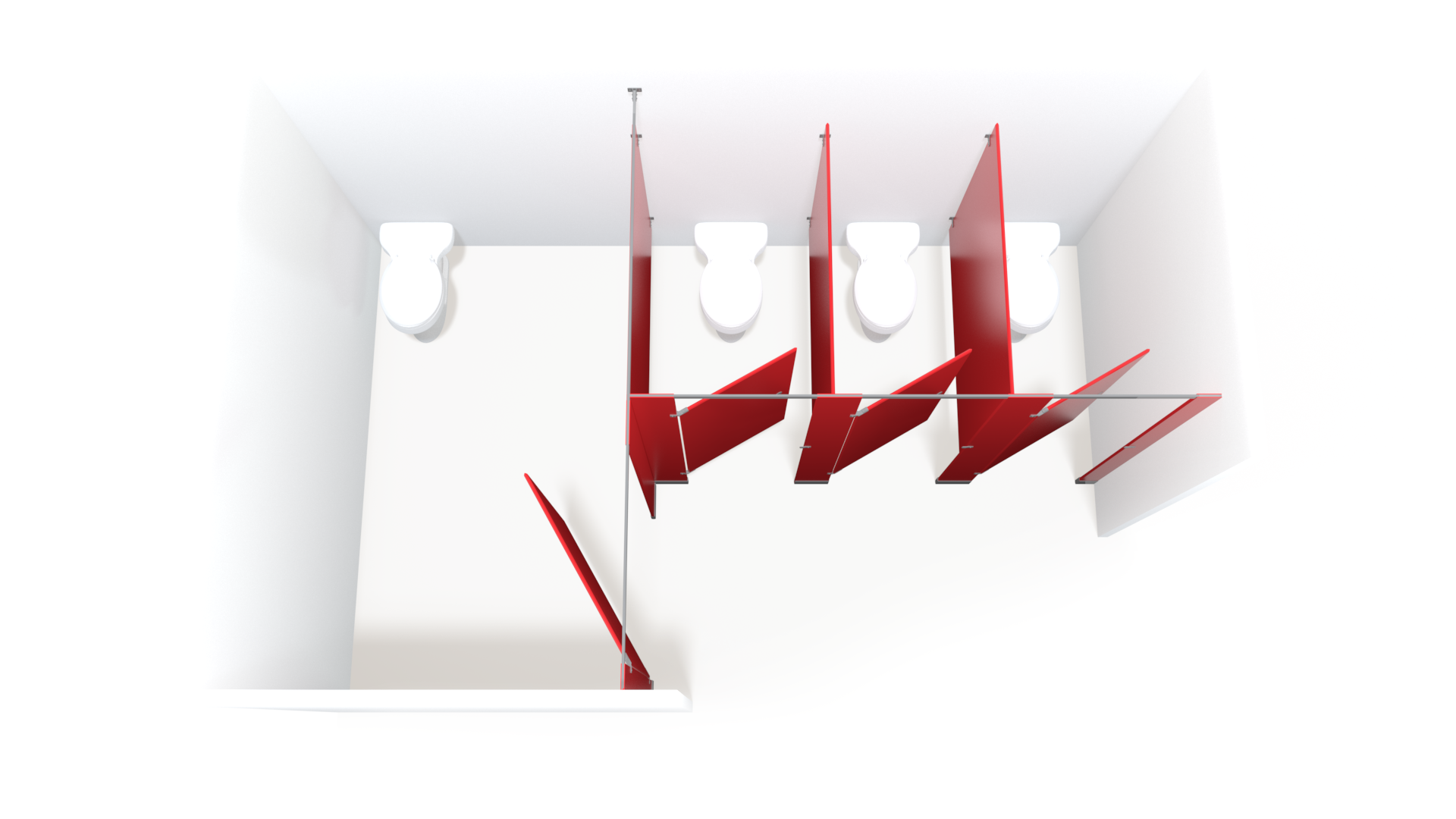

Layout413 - Alcove Left; 3 BW Units
Layout Code413
HeadrailsHeadrail-braced configuration includes 60", 72" or 90" headrails cut to length
Hardware Materialchrome plated (stainless optional upgrade)
ADA Stall Depth60" Typical
ADA Stall WidthN/A
Standard Stall Depth60" Typical
Standard Stall Width36" Typical
Alcove Channels1
Headrail Brackets4
Headrail End Caps0
F Brackets4
U Brackets6
H Brackets6
Coathook Bumpers4
Shoes (Stainless)6
Regular Stalls3
Alcove Stalls1
Box Stalls0
